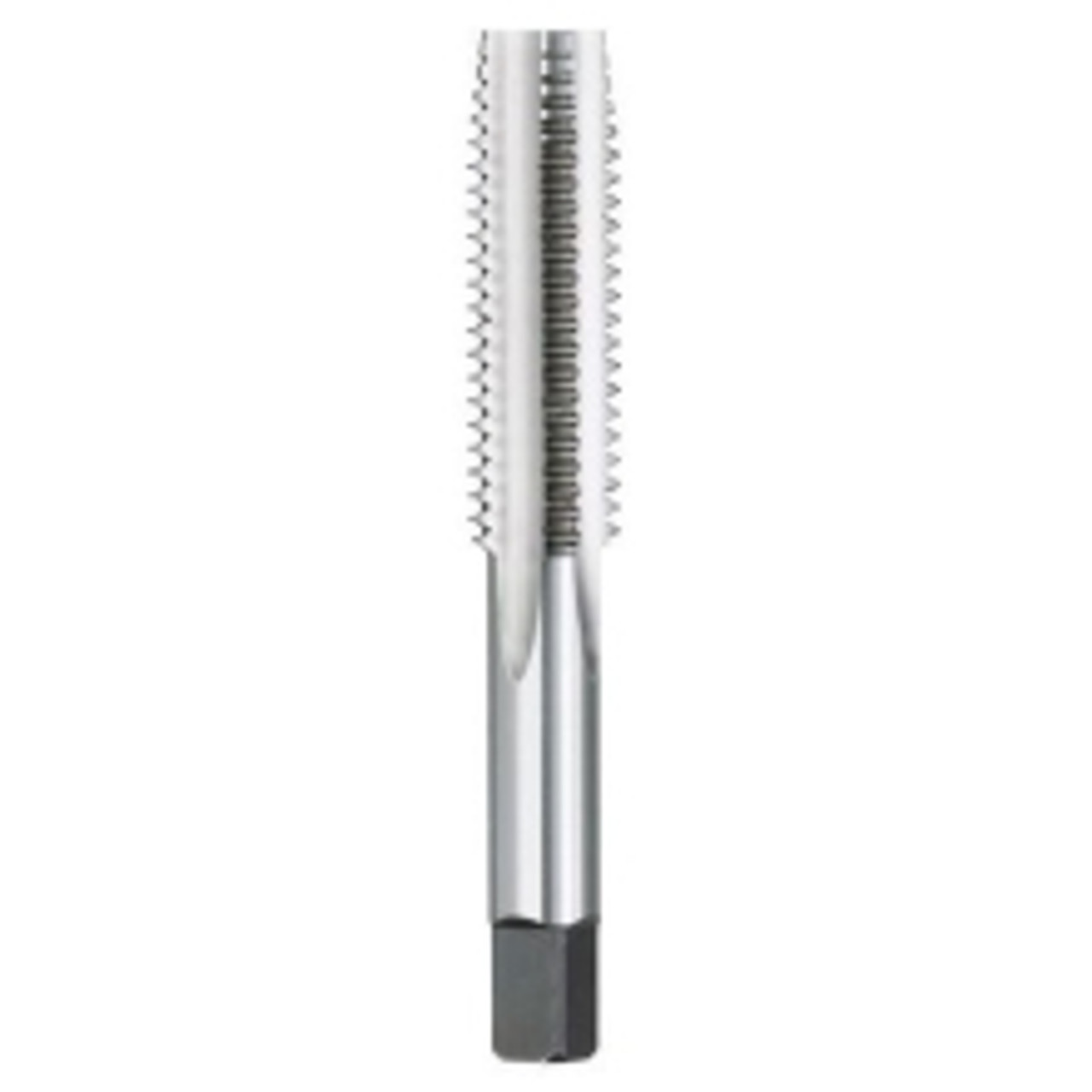

Product Description
Size (diameter) | M2.5 (2.5mm) |
Thread pitch | 0.45mm (Coarse) |
Material | High Speed Steel |
Tapping Drill Dia. Suggestion | 2.05mm |
Brand | Sutton, Bordo |
Available in 3 leads:
Taper: 8 - 10 leads of thread used for starting new threads
Intermediate: Less tapered, 4 - 5 leads, used to follow a Taper tap or for restoring threads
Bottoming: Very little taper 1 1/2 - 2 1/2 leads, so will cut a new thread to the bottom of a blind hole, but the lack of taper makes starting a new thread difficult.
A tap set is available, and it is simply three times the price of a single tap.
